Products > Veneer Rotary Lathe > Spindless Rotary Lathe > CNC Spindless Rotary Lathe SL1350/5B

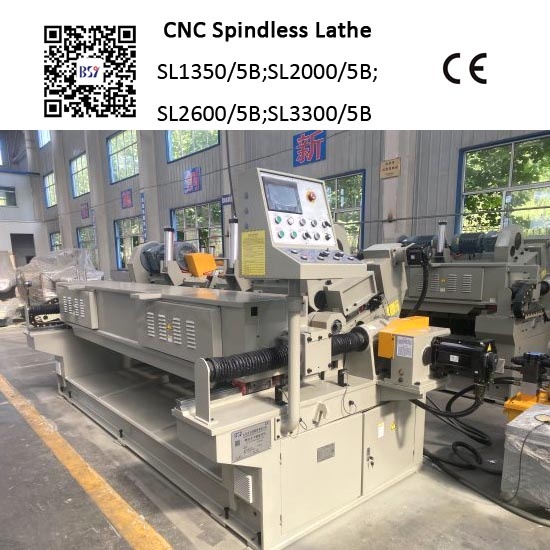

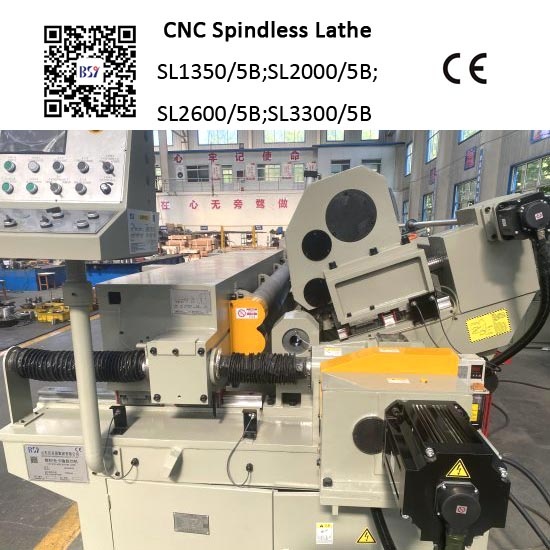

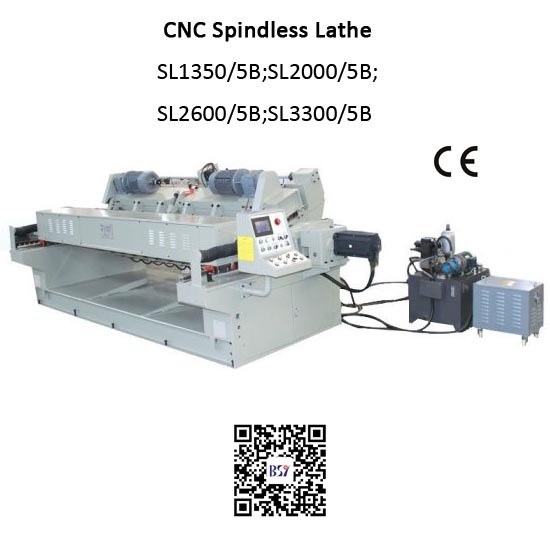

Product name : CNC Spindless Rotary Lathe SL1350/5B

Item : SL1350/5B

Enlarge Image

Back

←[Previous Product] [Next Product]→

Details:

Write to pofessionals:
---CNC Spindless Lathe of us adopt MITSUBISH CNC System,human interface setting parameters;

---Knife carriage forward&backward driven by Servo motor ;

--Veneer Peeling Knife holding within knife holder, along with hydraulic system clamping units;

---Strong rollers driven gear-box working together tight.

----Veneer peeling knife-gap action by MITSUBISHI SERVO MOTOR;

----Ball screw & linear guide guaranteen action accuracy ;
-----Top brand electrical,hydraulic,pneumatic components;

MODEL	SL3300/5B (10')	SL2600/5B (8')	SL2000/5B (6')	SL1350/5B (4')	SL2600/3B (8')	SL2000/3B (6')	SL1350/3B (4')
Rotary cutting length	3200mm	2600mm	2000mm	1350mm	2600mm	2000mm	1350mm
Max peeling dia.	φ480mm	φ480mm	φ480mm	φ480mm	φ360mm	φ360mm	φ360mm
After peeling log diameter	φ40mm	φ40mm	φ40mm	φ40mm	φ28mm	φ28mm	φ28mm
Veneer thickness	0.8~3.0mm	0.8~3.0mm	0.8~3.0mm	0.8~3.0mm	0.8~3.0mm	0.8~3.0mm	0.8~3.0mm
Peeling veneer speed(adjustable)	30~80m/min	30~80m/min	30~80m/min	30~80m/min	30~80m/min	30~80m/min	30~80m/min
Double roller transmssion power	2×11=22kW	2x11=22kW	2×11=22kW	2x 7.5=15kW	2×11=22kW	2×11=22kW	2×7.5=15kW
Single roller transmission power	2×11=22kW	2x11=22kW	2×7.5=15kW	2x 7.5=15kW	2×11=22kW	2×7.5=15kW	2×7. 5=15kW
Feeding servo motor	11kW	11kW	7kW	7kW	11 kW	7kW	7kW
Knife gate servo motor	1.5kW	1.5kW	1.5kW	1.5kW	1.5kW	1.5kW	1.5kW
Hydraulic motor	1.5kW	1.5kW	1.5kW	1.5kW	1.5kW	1.5kW	1.5kW
Machine total power	58kW	58kW	47kW	40kW	58kW	47kW	40kW
Dimension	5370×2150×1870mm	4770×2150×1870mm	4170×2150×1870mm	3520×2150×1870mm	4770×2000×1870mm	4170×2000×1870mm	3520×2000×1870mm
N.W	13500kg	11500kg	10800kg	10000kg	11300kg	10600kg	9800kg
