Products > Veneer Clipper > Veneer Guillotine > Hydraulic Veneer Scissors

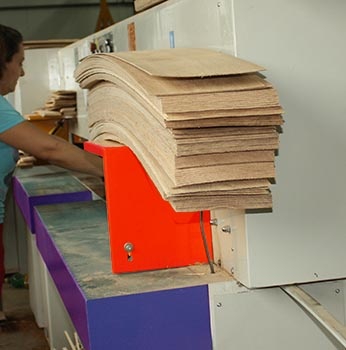

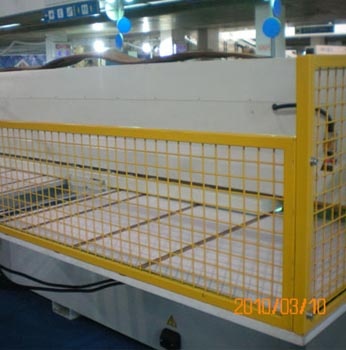

Product name : Hydraulic Veneer Scissors

Item : MJS260

Enlarge Image

Back

Details:

MJS veneer guillotine machines are designed for cutting slicing/fancy veneer sheets,one time cutting overlay pieces,
used ofr wood based panel second processing for varies decorative work.
Rear fence rail electrically adjustable;
Servo-motor and touch menu screen/digital indication as optional;
Pressure beam by hydraulic;
Safety&guide light for locating the cut position available;

Models	MJS360	MJS310	MJS260	MJS60
Cutting veneer length	3600	3100	2600	600
Max cutting thickness (veneer overlay)	50mm		50mm	50mm
Hydraulic pressure	14mpa		14mpa	14mpa
Hydraulic system motor power	3.7 kw(5hp)		3.7 kw(5hp)	3.7 kw(5hp)
Veneer feeding motor power	0.18kw	0.18kw	0.18kw	/
Knife blade size	370x9x1cm	319x9x1cm	270x9x1cm	69x9x1cm
Guillotine mac dimension size	470x160x155	420x160x155cm	370x160x155cm	240x170x150cm
Weight	3150	2830	2520	1110
