Products > Accesory Device > > Core Veneer Composer

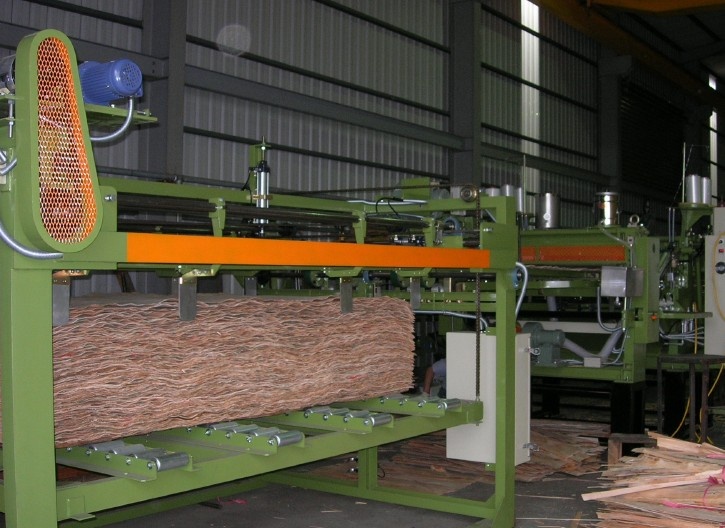

Product name : Core Veneer Composer

Item : VC1350

Enlarge Image

Back

←[Previous Product] [Next Product]→

Details:

Specific parameters fo core veneer builder Machine

Working veneer width 900 ~ 1350mm

The minimum width of the board can be processed 200mm

Veneer effective length 900 ~ 2600mm

Effective thickness of veneer 1 ~ 6mm

Efficiency 300 ~ 350 pieces per hour

Veneer Transmission speed 30 to 40 m / min

Dimension size 10.5x 2.4x 2.5 m

Drive motors

Precursor 2KW ;Rear-wheel drive 3KW

Before cutting force 1.5KW;After cutting force 1.5KW

Conveyor 0.75KW ;Conveyor 1.5KW ;Closing veneer movements 3KW

Sol slot Trunking 4KW ;Point groove 4KW

Machine weight 5000KG
