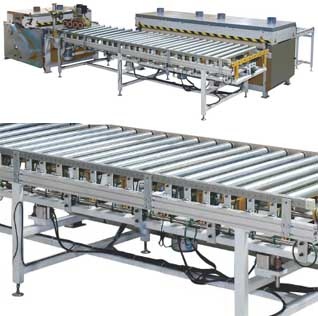

 Multi Blades Panel Cutting Saw  Use area including panel furniture(panel cutting),wood door(frames),floor (flooring below layers),

and other panel board need large quantity cutting work;Grooves cutting at back of panel boards,etc.

Cutting panel size capacity 1220mmm;2600mm;

Cutting thickness 5-25mm;35mm (increase available);

Frequency feed panel speed 12m/min

Saw shaft maximum rotation speed 2600rpm

Minimum cutting width 30mm (between two circular saw blade distance)

Main motor 2x11kw

Feeding panel board motor power 1.5kw

Hydraulic scissor lifter loading capacity 3000kg

Weight 1850kg

Dimension size 2.9x1.9x1.35m
