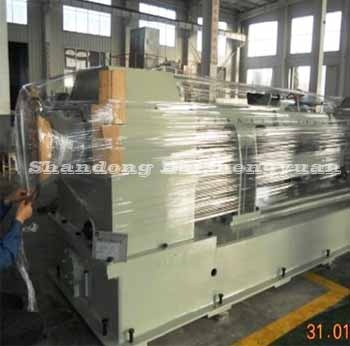

8ft Spindle Rotary Lathe
(mechanical way)
|
BQ1326/5
|
BQ1326/11
|
BQ1326/13
|
Peeling log diameter
|
125- 500mm
|
135- 1100
|
135- 1300mm
|
Peeling log length
|
2100-2700mm
|
1500-2700
|
1500-2700
|
with support device
|
with support device
|
Veneer thickness
|
0.3-3.25mm
|
0.3-3.25
|
0.3-3.25
|
Spindle diameter
|
100 mm
|
130
|
130
|
Spindle rotation speed
|
43-131rpm
|
16-96rpm
|
16-96rpm
|
Knife carriage moving speed
|
1.37m/min
|
1.32
|
1.32
|
Main motor power
|
55kw (AC,DC)
|
55kw (AC,DC)
|
55kw(AC,DC)
|
Rapid feed motor power
|
3kw
|
3
|
3
|
Nose bar lifting motor
|
1.5kw
|
1.5
|
1.5
|
Clamping motor power
|
3kw
|
4
|
4
|
Grinding angle of tool carriage
|
18°-20°
|
18°-20°
|
18°-20°
|
Overall dimensions
|
6990×2120X1325mm
|
8340×2290X1945
|
8340×2290X1945
|
Net weight
|
15000
|
17000
|
18000
|
NOTE: WORKING LOG LENGH 4FT,6FT,8FT OPTIONAL.
|
